Engineered Filtration for Demanding Process Applications

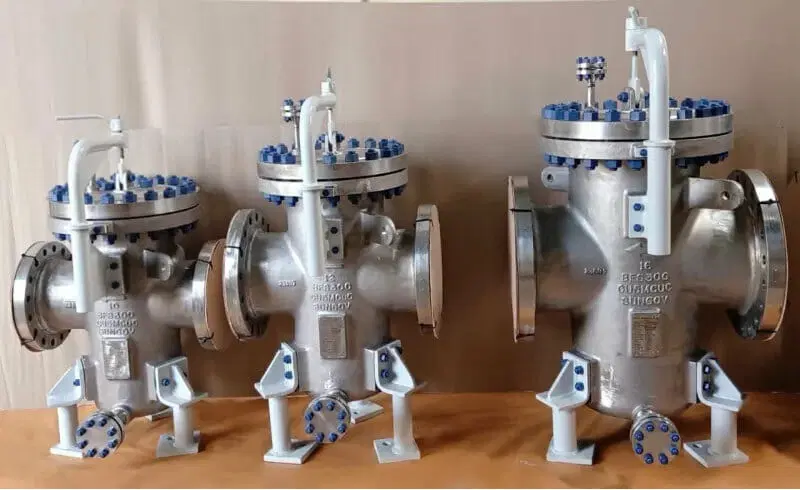

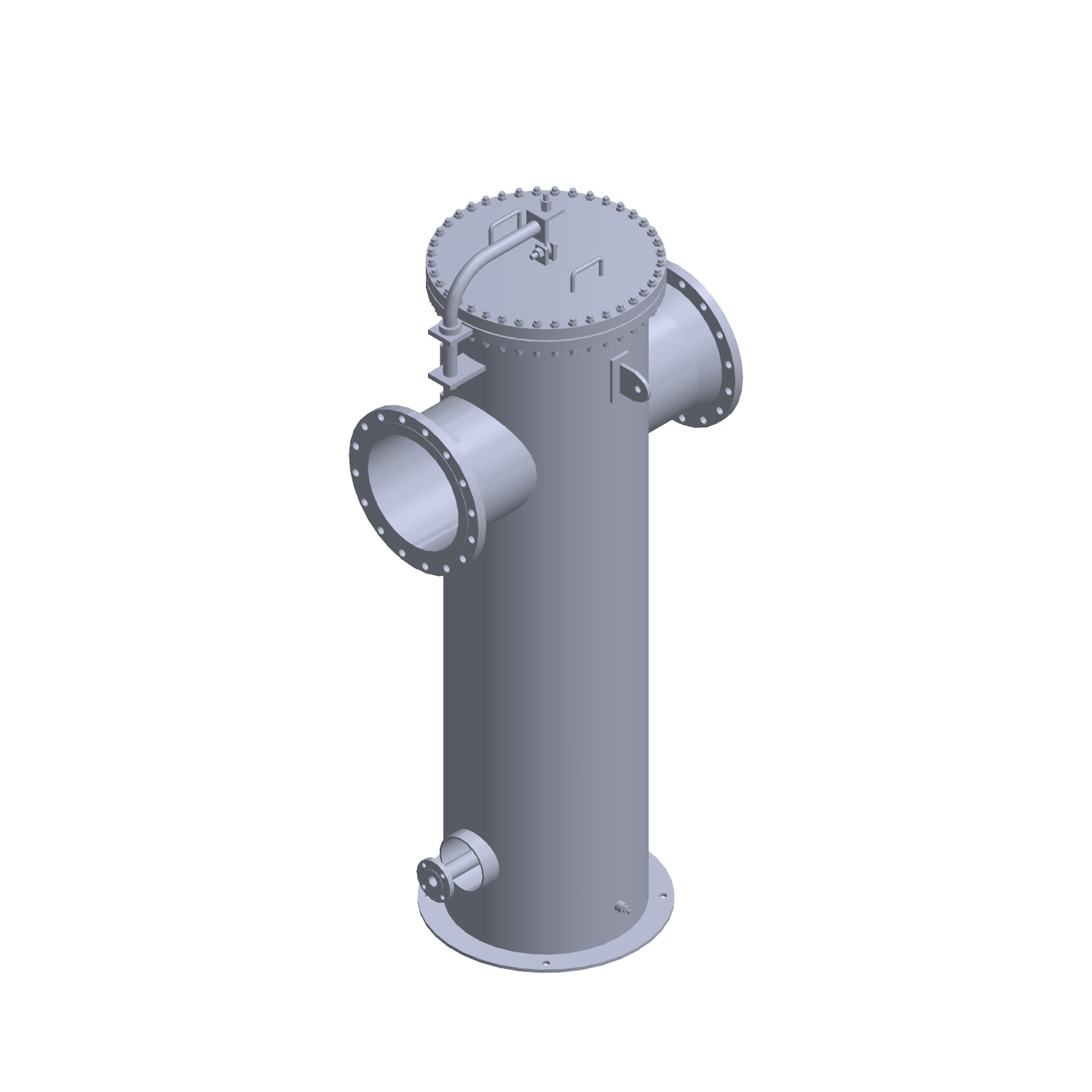

SG Industrial Inc. offers a comprehensive range of Basket Filters & Strainers—manufactured by Sungov Engineering—to ensure reliable, high-capacity filtration in a wide variety of industrial process systems. Designed for both cast and fabricated construction, our basket strainers are built to handle demanding operating conditions and to protect downstream equipment from particulate contamination.
Key Benefits:
- Flexible Construction
• Available in cast or fabricated designs, depending on pressure rating and service requirements
• Cast construction for standard-duty applications
• Fully fabricated construction for high-pressure or custom requirements
- High-Capacity Filtration
• Designed to remove larger solids and debris from process fluids
• Large basket area for extended service life between cleanings
• Multiple basket options available for increased capacity
- Maintenance-Friendly Design
• Quick-opening covers for easy basket access
• Drain and vent connections provided as standard
• Options for differential pressure taps available
Technical Overview:
| Design Pressure | Up to Class 2500 |
|---|---|
| Temperature Range | -320°F to 750°F |
| Standard Sizes | 1″ to 48″ |
| End Connections | Flanged, or butt-welded |
| Construction Materials | Carbon steel, stainless steel, duplex, or special alloys |
Why Choose SG Industrial Inc. Basket Filters & Strainers?
Custom Engineered
Available in both cast and fully fabricated designs to match your exact process needs—from standard water service to severe oil & gas and chemical applications.
Built to Industry Standards
Manufactured to meet or exceed ASME (with or without Code stamping), API, and PED requirements.
Versatile Configurations
Standard single-basket designs or multi-basket configurations available to handle higher flow rates or continuous operation.
Typical Applications:
• Process water filtration
• Crude oil and hydrocarbon service
• Chemical process lines
• Power generation systems
• Pump and compressor protection
Frequently Asked Questions
SG Industrial is a trusted basket filter supplier in Houston, TX, offering ASME-compliant filters for oil, gas, and chemical industries.
Industrial basket strainers for oil filtration remove dirt, rust, and solids from pipelines, protecting pumps, compressors, and downstream equipment.
High flow basket filter elements are designed with large surface areas to handle higher volumes, reduce pressure drop, and extend service life.
Yes, replacement basket filter cartridges are widely available in the USA, ensuring continuous operation and easy maintenance for industrial systems.
Basket type filters for chemical processing maintain fluid purity, prevent equipment fouling, and support compliance with strict safety standards.
-
